CATIA V6 (from version R2009)
Described are export settings for the CAD system “CATIA V6” from version R2009. With the recommended settings you ensure that the drawing file can be read by infra CONVERT in the best possible way.
Generally, it should be noted that fonts must be installed on the respective PC when processing drawing files in an exchange format, such as DXF or DWG.
See Dealing with missing fonts
DXF/DWG export
Recommended configuration:
General: DXF/DWG version DXF and DWG files can be loaded up to and including AutoCAD version 2023.

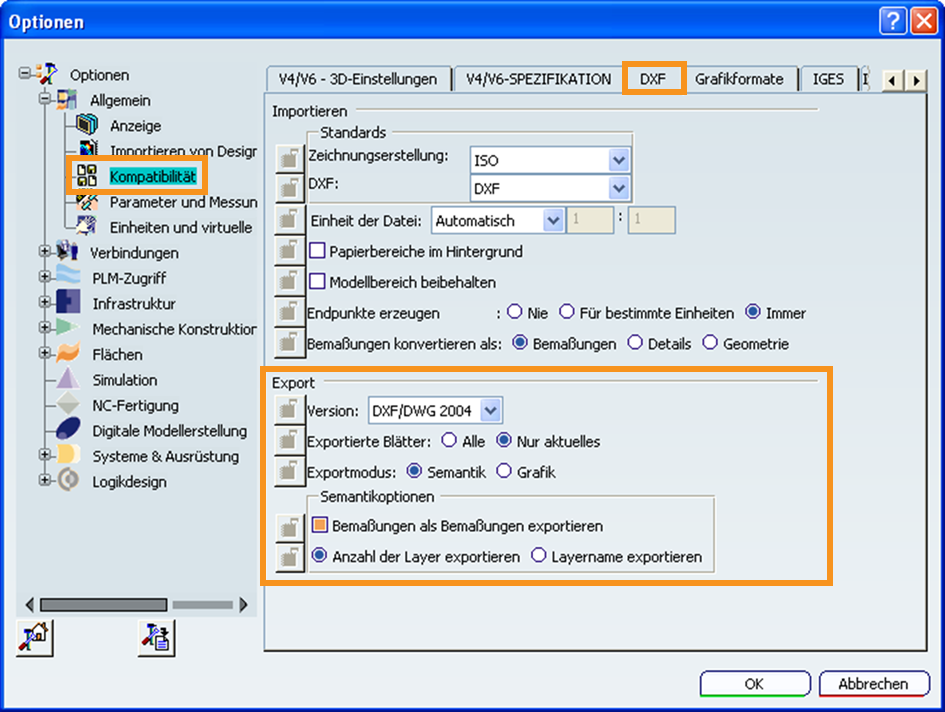

 | Export options | Menu bar > Tools > Options > Compatibility > DXF > Export └ Version: see “General - DXF/DWG version” above └ Exported sheets: Only current └ Export mode: Semantik └ Export dimension as dimension: Yes └ Export number of layers: Yes Version R2009:  |
|---|
IGES-Export
Recommended configuration:
| | Export settings | Menu bar > Tools > Options > Compatibility > IGES 2D > Export Exported sheets: Only current Export mode: Semantik Version R2009:  |
|---|
