Creo (from Elements/Direct Modeling 20.0)
Described are export settings for the CAD system “Creo Elements/Direct Modeling” from version 20.0. With the recommended settings you ensure that the drawing file can be read by infra CONVERT in the best possible way.
Generally, it should be noted that fonts must be installed on the respective PC when processing drawing files in an exchange format, such as DXF or DWG. See Dealing with missing fonts
Note These instructions describe the export from the user interface. The export settings described here must be taken into account accordingly for automated exports.
DXF and DWG export
Documentation of the manufacturer for DXF and DWG export (from Elements/Driect Modeling 20.0): Save or export files
Recommended configurations:
General: DXF/DWG version DXF and DWG files can be loaded up to and including AutoCAD version 2023.

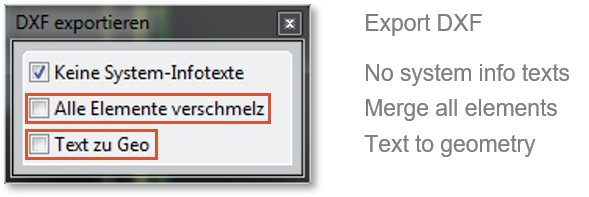

| Export options | Save as > DXF(file type) or DWG (file type) > Options └ Merge all elements: No └ Text tp Geometry: No Version 20.0:  |
|---|
