Inventor (from version 2019)

Described are export settings for the CAD system “Autodesk Inventor” from version 2019. With the recommended settings you ensure that the drawing file can be read by infra CONVERT in the best possible way.

Generally, it should be noted that fonts must be installed on the respective PC when processing drawing files in an exchange format, such as DXF, DWG or PDF.
 See Dealing with missing fonts

If an export result is not satisfactory despite the configuration recommendations, we will be happy to support you directly.

Documentation of the manufacturer for export: Inventor 2021 | To export data as DWG files.

Recommended configurations:

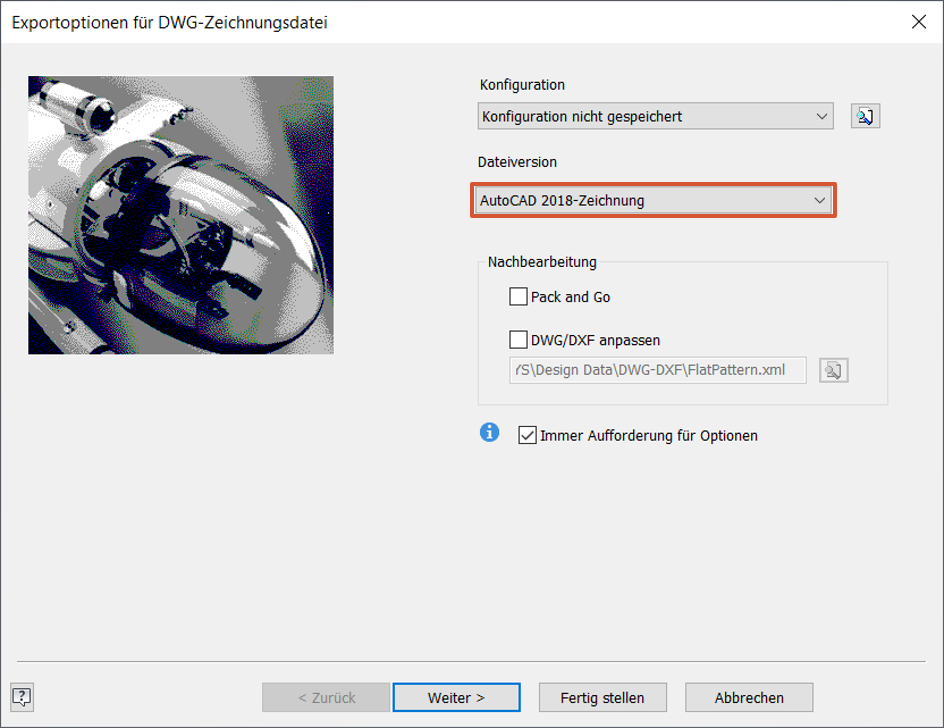

	Export options for DWG drawing file	File > Save as > Save copy as > AutoCAD DWG file (*.dwg) > Options └ File version: AutoCAD 2018 drawing Version 2021:
	Export destination directory	File > Save as > Save copy as > AutoCAD DWG-Dateien (*.dwg) > Options > Next └ Data scaling: Sheet scaling - Model space └ Next AutoCAD assignment: Yes Version 2021:
	Assignment options…	File > Save as > Save copy as > AutoCAD DWG file (*.dwg) > Options > Next > Assignment options > General └ Data scaling: Sheet scaling - Model space └ BEMZUORD: 1 └ Convert drawing symbols to blocks: Yes └ Use AutoCAD color indices for objects and layers: Yes Version 2021:

Documentation of the manufacturer for export: Inventor 2021 | Saving and exporting files - Reference.

Empfohlene Konfigurationen:

	Export options for DXF files	File > Save as > Save copy as > DXF files (*.dxf) > Options └ File version: AutoCAD 2018 DXF Version 2021:
	Export destination directory	File > Save as > Save copy as > AutoCAD DWG files (*.dwg) > Options > Next └ Data scaling: Sheet scaling - Model space └ Next AutoCAD assignment: Yes Version 2021:
	Assignment options…	File > Save as > Save copy as > AutoCAD DWG files (*.dwg) > Options > Next > Assignment options > General └ Data scaling: Sheet scaling - Model space └ BEMZUORD: 1 └ Convert drawing symbols to blocks: Yes └ Use AutoCAD color indices for objects and layers: Yes Version 2021:

Manufacturer documentation: Inventor 2021 | Saving and exporting files - Reference.

Recommended configurations:

	Export PDF	File > Export > PDF > Options… └ Print area: All sheets └ all colors black: Yes └ Remove object line thicknesses: No └ Vector resolution: 400 to 600 Version 2021:
