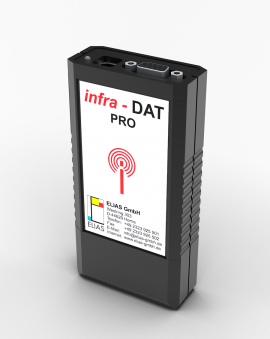

infra - DAT Receiver
This page contains information about the infra - DAT receiver.
The infra - DAT receiver receives data sent from your your infra - DAT transmitter.
Using high performance radio technology, the tried and tested infra - DAT system has an impressive transmission range in the industrial environment.
It is possible to connect any number of digital measuring devices to a measurement station. A total of 68 available frequency channels means that up to 68 measuring sites can be independently serviced without any mutual interference. The Measuring Data Manager software (MDM -Tool) provides quick and easy organization of measuring device to measuring site.
To transmit data to a PC you need a infra - DAT receiver and our Measurement Data Manager software shipped with the receiver. You can also download this software from the following link on our website:
http://www.elias-gmbh.de/de/produkte/infra-dat/support/treiber.html
Depending on application and local conditions data can be radio transmitted up to a range of 100 metres .
The receiver has USB and RS232 interfaces. The RS232 interface allows you to connect the receiver to programmable data storage control devices that lack a USB connection.
Intended use
This device may only be used as authorized and compliant with all the information published about its use. Any use or application other than that expressly authorized is deemed inappropriate. The manufacturer accepts no liability for any damage arising from such misuse. Comply with and observe all laws and regulations applicable for use of the device.
General
To operate the radio receiver, connect up via USB or RS232. Install the Measurement Data Manager software and then turn on the device. A virtual interface appears which can be used for data exchange.
Connection via USB interface
Power is supplied to the infra - DAT receiver via the USB interface
WARNING: Do not connect the RS232 in parallel!
Use only the cables supplied.
Connection via RS232 interface
Turn off the PC. Connect the receiver using the 9-pole D-SUB cable to the RS232 socket on the PC. Connect the power supply to receiver with the USB cable supplied. Set the voltage and frequency on the power supply to that of your mains electrical supply. When matched, plug in the power supply and turn on the PC again. Use only the cables supplied.
Technical data
| Radio transmitter frequency | 433.05MHz - 434.79MHz |
| Frequency channels | 69 |
| Power supply | 5V via USB connection |
| Interfaces | USB / RS232 (4800,8,N,1) |
| Operational temperature range | +10°C … +35°C |
| Relative humidity | 30% - 90% (non-condensing) |
| Appliance class | IP40 |
| Transmission range (depending on local conditions) | up to 100m |
| Dimensions L x W x H | 120mm x 58mm x 25mm |
| USB cable length | < 3m |
| RS232 cable length | < 3m |
| Type | RCE-TWIN-433 |
| Order number | ID06099999 |
Declaration of Conformity: http://www.ELIAS-GmbH.de/doc/infra-DAT.pdf
