Administrator Manual infra CONVERT > Installation

License service

The ELIAS License Service is a utility program (“EliasLicenseService”) and is required to run the full version of infra CONVERT. When running the installation wizard (“infra_CONVERT-Setup.exe” in the regular installation package), the license service is automatically installed locally on the computer. However, it can also be downloaded and installed separately (“EliasLicenseService-Setup.msi”).
 Siehe Homepage > Service > Download > Software > infra CONVERT > infra CONVERT Lizenzservice

The functions included in the purchased license scope are unlocked accordingly with the license service in infra CONVERT. Without activation infra CONVERT can only be used in the demo version.
 See At a glance > The range of functions basic and pro

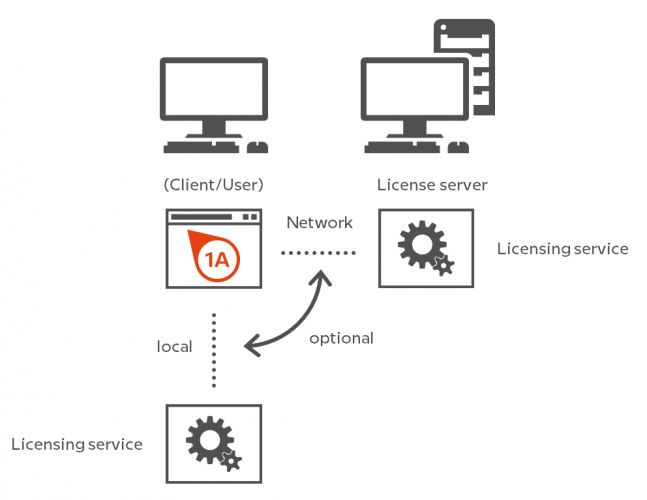

The license service can be installed locally on the same machine where infra CONVERT is running.
 See User manual> Installation > Set up a local license

However, the license service can also be installed on any computer (server) in a network. Instances of infra CONVERT (clients, users) accessible via the network can then share a license. The clients compete for the seats (concurrent user license model).
 See User manual> Installation > Set up a server license

As a general rule, the license service must be continuously available during the use of infra CONVERT.


Inhalt

 • System requirements
 • License client - operate license service without infra CONVERT
 • Enable port for the license service


System requirements

Operating system
at least

Windows 7 Service Pack 1 (SP 1),
Microsoft Windows Server 2008 R2 (SP 1)


Microsoft Framework
at least

.NET Framework 4.5.2


Web connection
Internet access

Not required


License client - operate license service without infra CONVERT

The license client is a console application that allows you to operate the license service without infra CONVERT. You can find the program in the installation directory of infra CONVERT.

C:\Program Files\ELIAS GmbH\infra-CONVERT-Core\LicenseClient.exe

The actions described below can be executed by passing start parameters with the following syntax. The parameters in square brackets are optional; if no parameter is specified, information is output for help.

LicenseClient.exe [server=<servername>] [<command> OR <filename>]


Address license server
<servername> Set UNC network address of the license service (host and optionally the port as URL). Without this parameter the license service will be searched locally (“localhost”).
Read out information
1 Status Query the status from the license service and output it as a string.

NoLicenseFound No license found
Invalid License invalid
InvalidActivationKey Invalid registry key
Expired License expired
ValidUntil License valid until a certain date
Valid License is valid
AllLicenseInUse All license places are occupied
ServerNotFound The license server could not be found (= Status message of the license client)
2 RegKey Query the registration key and output it as a string.
3 Details Query the license information and output it in JSON format.
Load license file
4 <filename> Load a license file from the specified file path.

Example

Retrieve the registration key of the license service installed on the license server “example-server”:

LicenseClient.exe server=example-server RegKey


Enable port for the license service

For the connection to the license service, an HTTPS connection to the specified host is established on port 6781. Make sure that this connection is not blocked by a firewall or redirected by a proxy server.

The following example describes how to release the port on the license server for the license service installed there. The description shows the standard case for the Windows 10 operating system with “Windows Defender Firewall”.

Step Action Result
1 “Open “Windows Defender Firewall with Advanced Security 1) Click on Settings in the Start menu and then under Update and Security. > Open Windows Security on Windows Defender Securtiy Center. 1) ”Windows Defender Security Center” is open.
2) Under Firewall & Network Protection, click Advanced Settings at the bottom. 2) The Windows Defender Firewall with Advanced Security application opens.
2 Add new incoming rule 1) Click Incoming Rules in the directory tree on the left. 1) In the middle pane, a list of already defined incoming rules is displayed.
2) Click Action > New Rule… in the menu bar. 2) The “New incoming rule wizard” opens. The required steps are displayed on the left. You are first in the input mask for the “Rule type” step.
3) First select User defined as the rule type and click Next. 3) Die Eingabemaske für den Schritt “Programm” wird angezeigt.
4) Select This program path, click Browse and select the license service executable file “Common.EliasLicenseService.exe”, which is installed by default in “C:\Program Files (x86)\ELIAS GmbH\EliasLicenseService”. Then click Next. 4) The input mask for the “Protocols and ports” step is displayed.
5) Select the protocol type “TCP” from the list and then select the entry Determined ports under “Local port”. Below this, enter “6781” in the field that is now unlocked. Then click on Next. 5) The input mask for the “Range” step is displayed.
6) In the input masks of the steps “Area”, “Action” and “Profile” you can change the default settings if required. Click Next through these steps until you reach the “Name” step. 6) The input mask for the “Name” step is displayed.
7) Specify any name for the rule, e.g. “ELIAS GmbH Lizenzservice” and click Prepare. 7) The new rule is created, it is displayed in the list of incoming rules.
