| Step | Action | Result | |
|---|---|---|---|

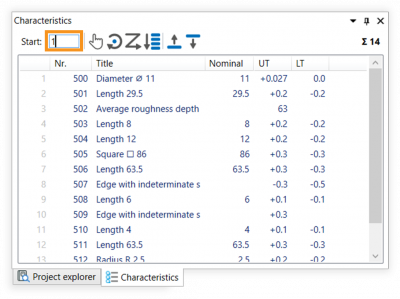

| 2 | Set start value | Enter the desired number in the field for the start value in the Characteristics list function window, which is to be assigned for the next characteristic to be numbered. | The starting value is predetermined, for example “1”: |
| 2 | Numbering | Four alternative functions are available for the numbering: 2a) Manually number 2b) Number clockwise 2c) Number in reading direction 2d) Renumber by list position |
|
| 2a | Manually number | 1) Click on the Manually number button ( ) in the Characteristics overview function window. | 1) The Manually number mode is now active. |

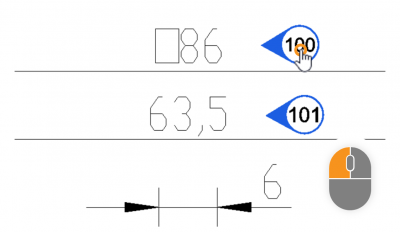

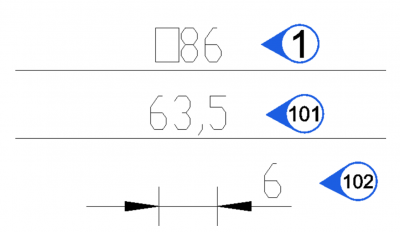

2) Move the mouse pointer over the drawing surface and click on the stamp of the desired characteristic.: | 2) The characteristic number has been changed: The next free number is now displayed in the field for the start number. Note If a number has already been assigned, the next free number is automatically selected. |
||
3) You can now click on additional characteristics or leave the Manually number mode by clicking on the Selection tool button ( ) in the toolbar or by pressing the ESC keyboard button. | 3) If necessary, additional characteristics are re-numbered. The Manually number mode is now no longer active. | ||

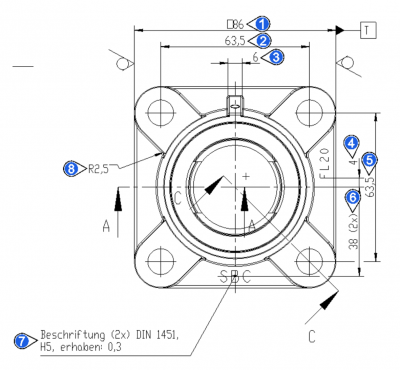

| 2b | Number clockwise | 1) Select the characteristics to be numbered, either by selection in the characteristics list or on the drawing sheet (see also User interface > Operation – Special features when selecting). | 1) The desired characteristics are selected. The drawing view mentioned in step 1 is to be re-numbered consecutively in the example. |
2) Click on the Number clockwise button ( ) in the Characteristics overview function window. | 2) The Stamp clockwise mode is now active. | ||

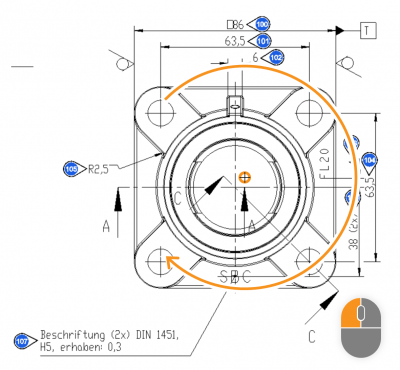

3) Move the mouse pointer over the drawing surface (the pointer is now displayed as a positioning cursor  ) and click the center point around which you wish to number: | 3) The characteristic numbers have been re-numbered corresponding to their position relative to the center point: The next free number is displayed in the field for the start number. Note If a number has already been assigned, the next free number is always automatically selected. |
||
| 2c | Number in reading direction | 1) Select the characteristics to be numbered, either by selection in the characteristics list or on the drawing sheet (see also User interface > Operation – Special features when selecting). | 1) The desired characteristics are selected. The drawing view mentioned in step 1 is to be re-numbered consecutively in the example. |

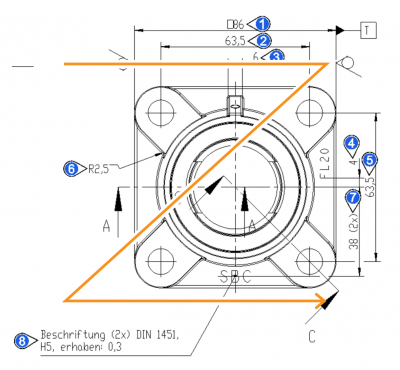

2) Click on the Number in reading direction button ( ) in the Characteristics overview function window. | 2) The characteristics are now numbered in the reading direction (from left to right and top to bottom): The next free number is displayed in the field for the start number. Note If a number has already been assigned, the next free number is always automatically selected. |
||

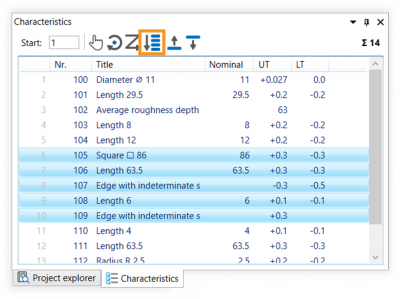

| 2d | Renumber by list position | 1) Select the characteristics to be numbered, either by selection in the characteristics list or on the drawing sheet (see also User interface > Operation – Special features when selecting). | 1) The desired characteristics are selected: |
2) Click on the Renumber by list position button ( ) in the Characteristics overview function window. | 2) The characteristic numbers have been re-numbered corresponding to their position in the characteristic list: The next free number is displayed in the field for the start number. Note If a number has already been assigned, the next free number is always automatically selected. |
||
