Step		Action	Result
Option 1

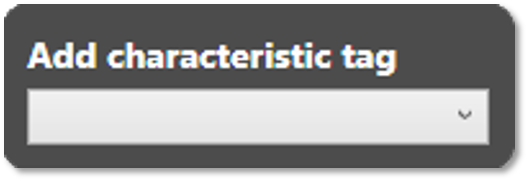

1	Activate labeling tool	Click on the Labeling tool button () in the toolbar.	If you now move the mouse pointer into the drawing window, it will be displayed as a “Label” (). The Add characteristic label input mask will also be displayed at the bottom left of the drawing window:
2	Select label	Select the appropriate label from the drop-down menu in the Add characteristic label input mask.	The label is now preselected.
3	Assign label	Click the stamp of a characteristic (left mouse key) in the drawing window, the label assignment of which you wish to undo.	The stamp symbol is now no longer displayed in the label color, i.e. the label is no longer assigned to the characteristic.
