Together with our partner AfM Technology GmbH, Aalen, we offer you a solution that allows you to automate the test planning and documentation process around ZEISS CALYPSO. Use the infra CONVERT and AfM CE Creator products to create a continuous data flow from the entry in the technical drawing to the inspection characteristic in ZEISS CALYPSO, which can also be used to process drawing changes quickly and reliably.

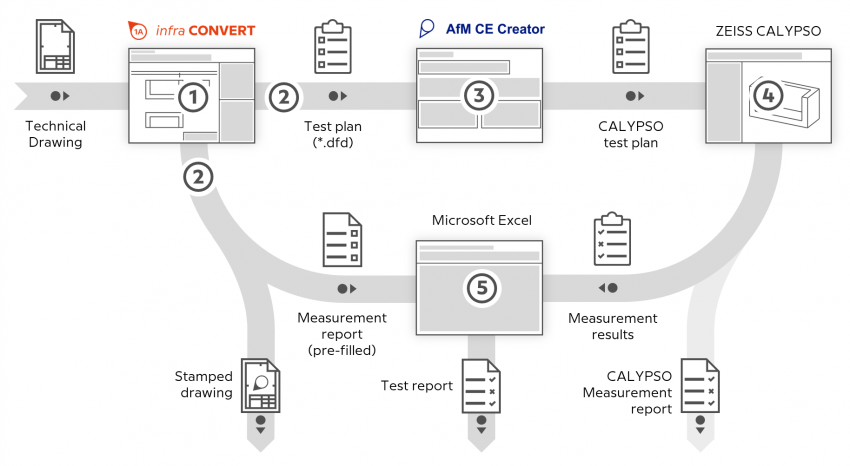

1)

Based on the drawing sheets loaded in infra CONVERT the inspection characteristics are created.

2)

The list with inspection characteristic definitions is exported as an inspection plan in QDAS ASCII transfer format (*.dfd) and as an Excel test report. The stamped drawing is exported as a PDF here in the example.

3)

In AfM CE Creator, the inspection characteristic data is prepared in the form required by ZEISS CALYPSO.

4)

The measurement program is created in ZEISS CALYPSO on the basis of the test characteristics. The test characteristics are linked to the measuring elements for this purpose.

5)

After successful measurement in ZEISS CALYPSO, the measurement results are exported and imported into Microsoft Excel in the prefilled test report using a macro. The test report generation can now be completed.

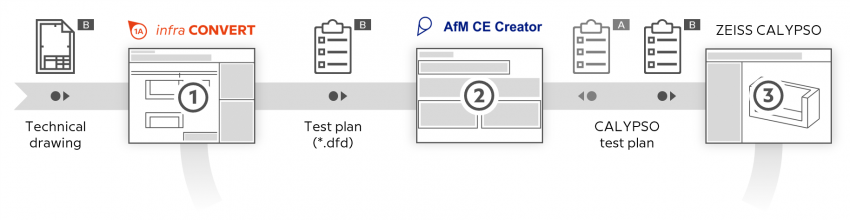

1)

The drawing sheets with the new change status, here “B”, are loaded into the previously created project in infra CONVERT. Using the drawing comparison, the test plan is updated and transferred to AfM CE Creator in DFD format.

The test report generation in Excel is analogous to the basic description above and is therefore not shown again.

2)

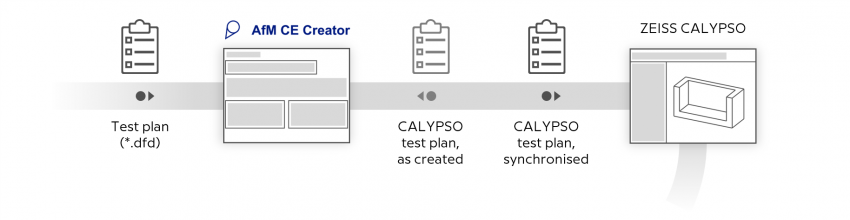

In AfM CE Creator, the ZEISS CALYPSO test plan is updated using the new test characteristic definitions and transferred back to ZEISS CALYPSO.

3)

In ZEISS CALYPSO, it is now only necessary to link the new test characteristics to the corresponding measuring elements. The measuring program has been updated.
