Benutzerhandbuch infra CONVERT > Funktionen > Export

Export test plan


With this function you can:

  • write the contents of a test plan version directly to a Microsoft Excel file that you have configured,
  • export the contents of the entire project, i.e. all contained test plan versions, in the following data exchange format: JSONV2.
Important If you use infra CONVERT as a module in a CAQ system, the test plan will automatically be saved in the CAQ system’s default path when saving a project (see Functions > Projects > Save project; Introduction > User manual tips > If infra CONVERT is integrated into a CAQ system).
Note Information on how to create and edit Excel templates can be found here: User manual infra CONVERT > Additional information Create and edit Excel templates. For information on the structure of the data exchange formats, see an dieser Stelle informieren: Administratorhandbuch infra CONVERT > Export


Workflow: Export test plan version

Step Action Result

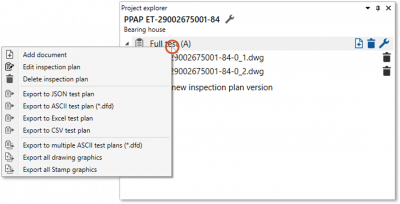

1 Open export menu In the project overview, right-click the test plan version you want to export. A context menu opens:
2 Export test plan … You can now export the test plan
a) in JSON format (JSONV1).
b) in ASCII transfer format.
c) in CSV format.
d) in individually formatted CSV format.
e) in Excel file.
2a … to JSON format 1) On the context menu, click Export to JSON test plan. 1) The “Export to JSON test plan” window opens.
2) Check the additional test plan data and adjust it if necessary. Select the filters to be applied. 2) The additional data and the filter selection are correct.
3) Click Export. 3) In the file manager that opens, you can now save the file as usual to a location you specify.
Note Additional data are available from program version 2.10.0. Filters and additional data are available only in the Pro version.
2b … in ASCII transfer format 1) You can export the test plan version to a summarized DFD file; to do this, click Export as ASCII test plan (*.dfd). To export the partial test plans to separate DFD files, click Export to separate ASCII test plans (*.dfd). 1) The “Export to ASCII test plan (*.dfd)” dialog box opens.
2) Check the additional test plan data and adjust it if necessary. Select the filters to be applied. 2) The additional data and the filter selection are correct.
3) Click Export. 3) In the file manager that opens, you can now save the file as usual to a location you specify.
Note A partial test plan contains the characteristics linked to a drawing sheet. The additional data can be taken from test plan properties as of program version 2.10.0. Filters and additional data are only available in the Pro version.
2c … to CSV format 1) In the context menu, click Export to CSV test plan. 1) The “Export to CSV test plan” dialog box opens.
2) Check the additional test plan data and adjust it if necessary. Select the filters to be applied. 2) The additional data and the filter selection are correct.
3) Click Export. 3) In the file manager that opens, you can now save the file as usual to a location you specify.
Note The additional data are only offered for export if the corresponding setting is set, see Customization. The additional data can be taken from test plan properties as of program version 2.10.0. Filters and additional data are only available in the Pro version. If neither a title line is to be exported and no filter has been defined beforehand, the “Export as CSV test plan” dialog box does not appear.
2d … to CSV format (individually formatted) As an alternative to the regular CSV export, you can export an individually formatted CSV test plan based on an Excel template file (XLTX). To do this, follow the instructions for step 2e “Export test plan to Excel file”. Finally, select “CSV” as the file type in the file manager.
2e … to Excel file 1) Click Export as EXCEL test plan in the context menu. 1) The “Export as EXCEL test plan” dialog box opens.
2) Set the export behavior:

Common: Select the desired template file and determine whether the exported file should be opened directly after export.

Additional data: Check the additional test plan data and adjust it if necessary.

Apply filter to export: Select the filters to be applied.
2) The export behavior is correctly specified.
3) Click Export. 3) In the file manager that opens, you can now save the file as usual to a location you specify. The available file types are XLSX, XLS, XLSM and CSV.
Note Microsoft Excel must be installed on the computer to run the export. Additional data are available from program version 2.10.0. Filters and additional data are available only in the Pro version.


Workflow: Export all test plan versions

Note Available from program version 1.4.2.2.

Step Action Result

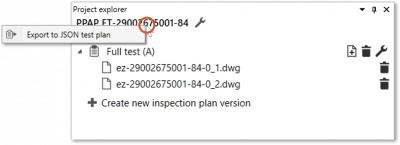

1 Open export menu Click in the project overview with the right mouse button on the project title. A context menu opens:
2 Export test plan … Export the test plan …
2a) … in JSON format (JSONV2).
2a … in JSON format Click Export to JSON test plan on the context menu. In the file manager that opens, you can now save the file as usual to a location of your choice.


The function can be influenced via the following settings:

Customize test plan attributes

Customize the Test plan attributes list. Any other attributes can be added to the standard ones listed above.
See Settings > Settings > Administration > "Additional attributes for test plan versions" group

Title row in CSV file

Specify whether or not to export an additional title bar in the CSV file.
See Settings> Settings > Export

Excel template save location

Change the save location of the Excel template files and the export behaviour.
See Settings > Settings > Export


Go to previous page
Functions > Characteristics > Filtering

Go to next page
Functions > Characteristics > Export drawing
