NX 10
This manual describes how to export drawing files in DWG, DXF and IGES formats (→Drawing data format) from the NX 10 CAD system. The recommended settings ensure that the drawing file can be read by infra CONVERT in the best possible way.
These instructions can also be applied analogously to the following and possibly further program versions:
- NX 8.5
DWG export
| Step | Action/result | |
|---|---|---|

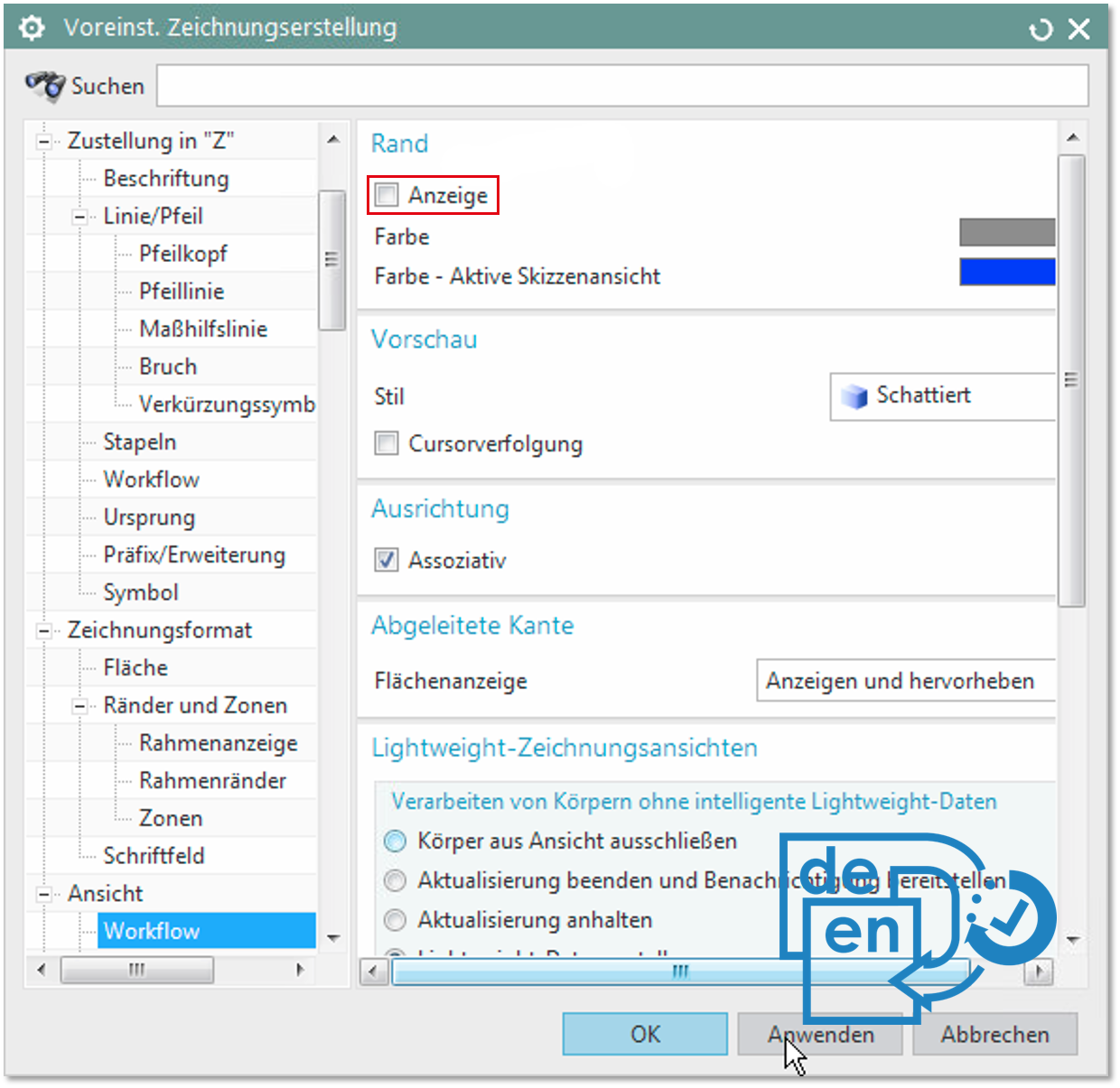

| 1 | Customize drawing view | Open the Default drawing view menu via File > Drawing view. Select the Workflow submenu in the View subdirectory. Deactivate the display of the margin of the views there. |

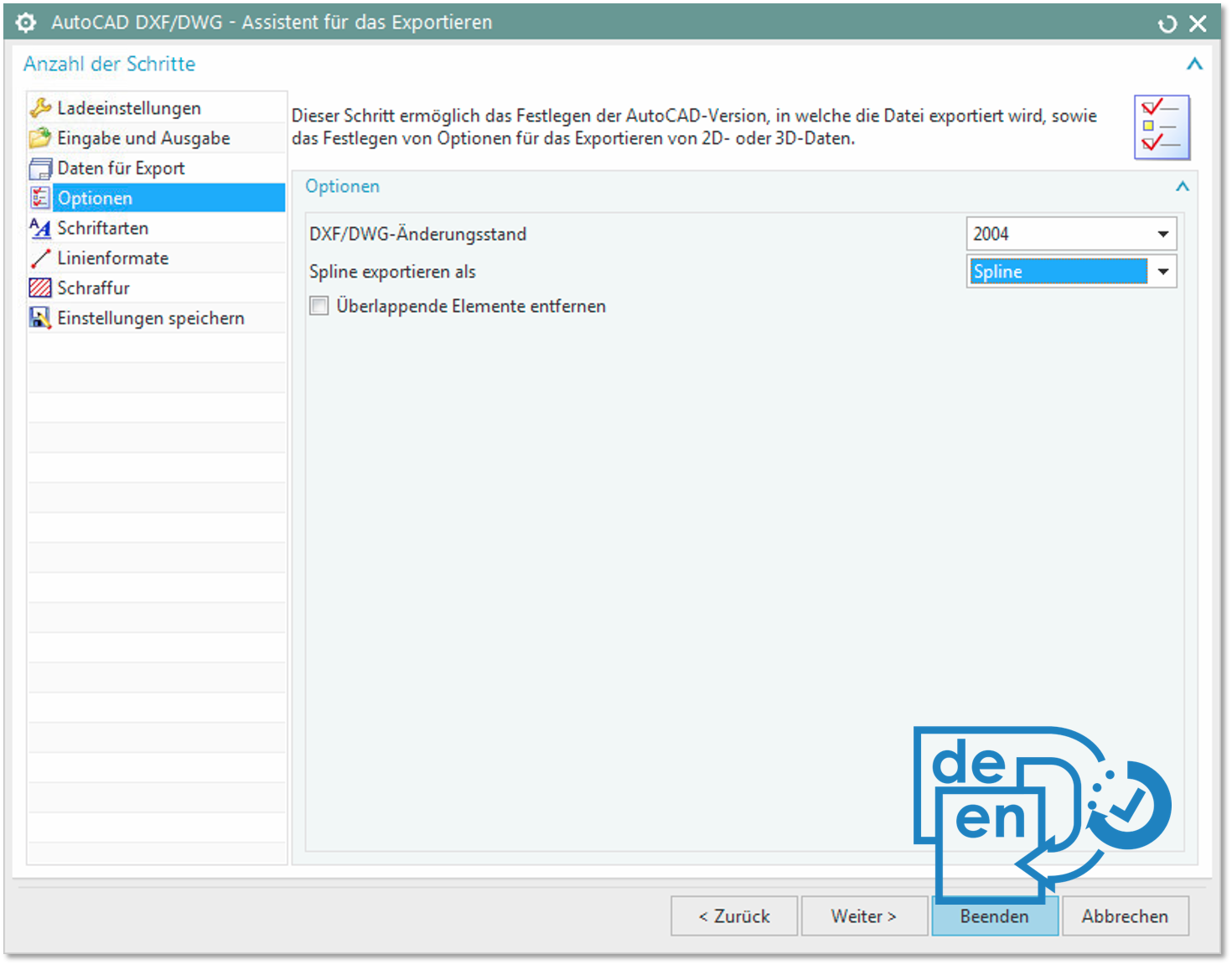

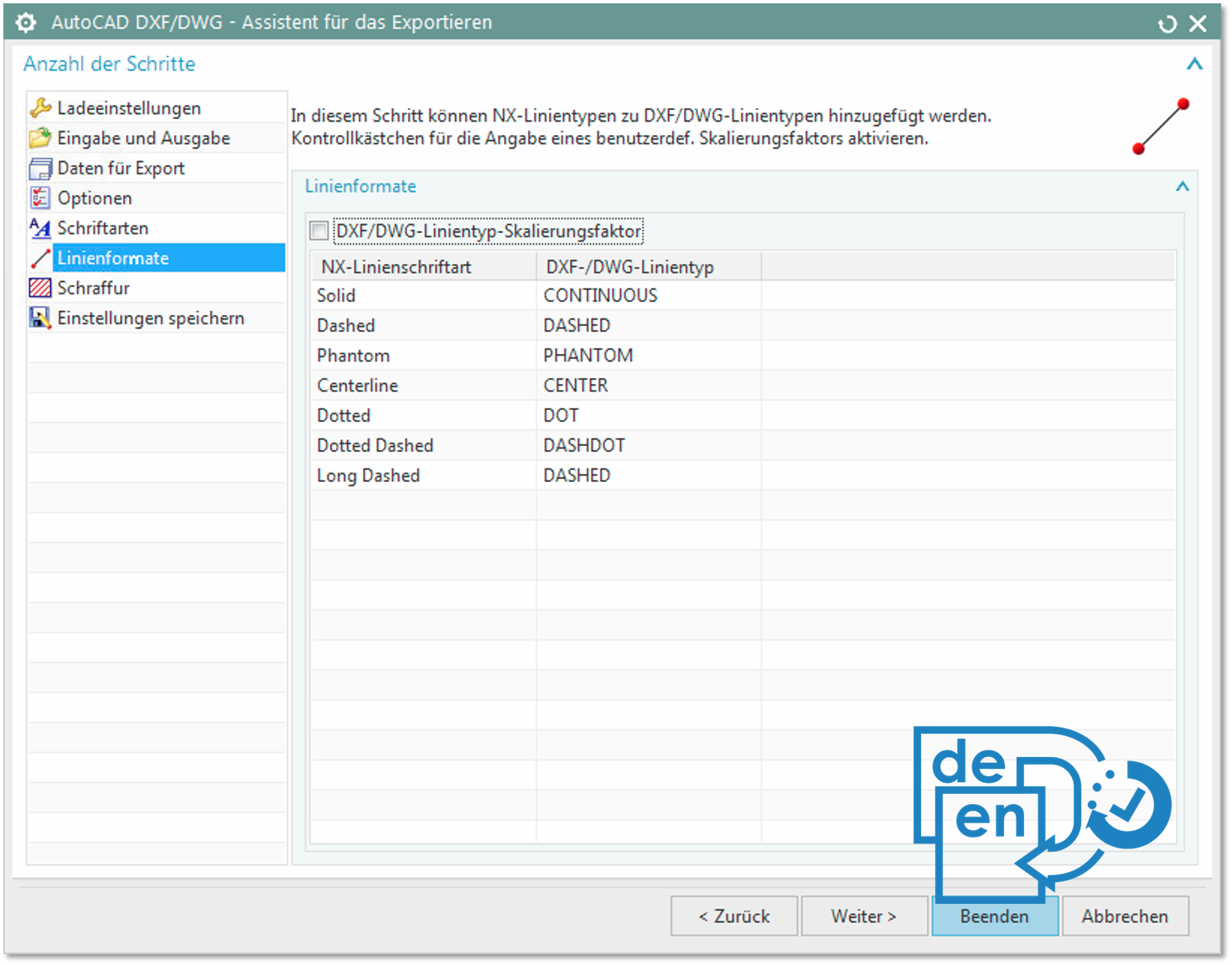

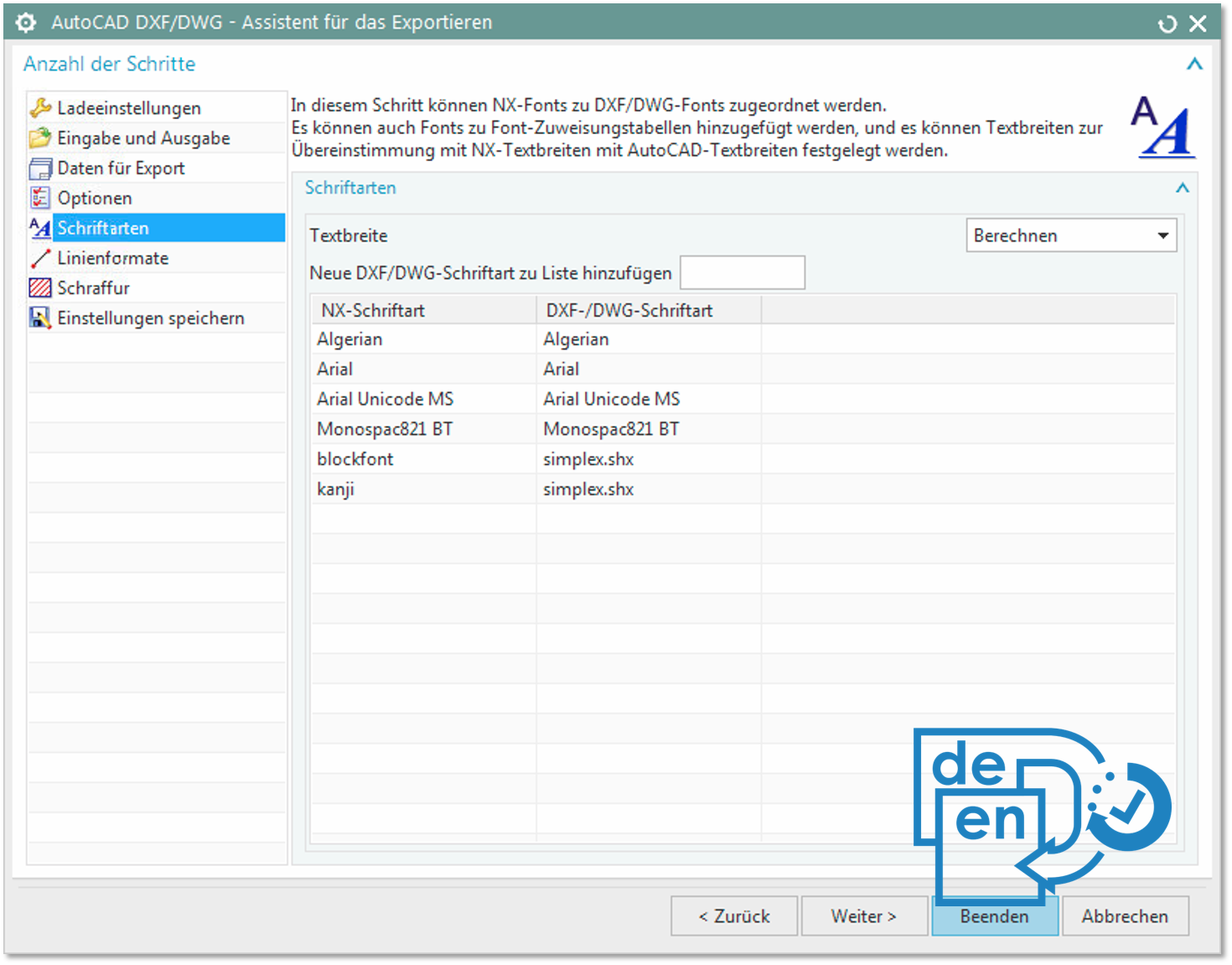

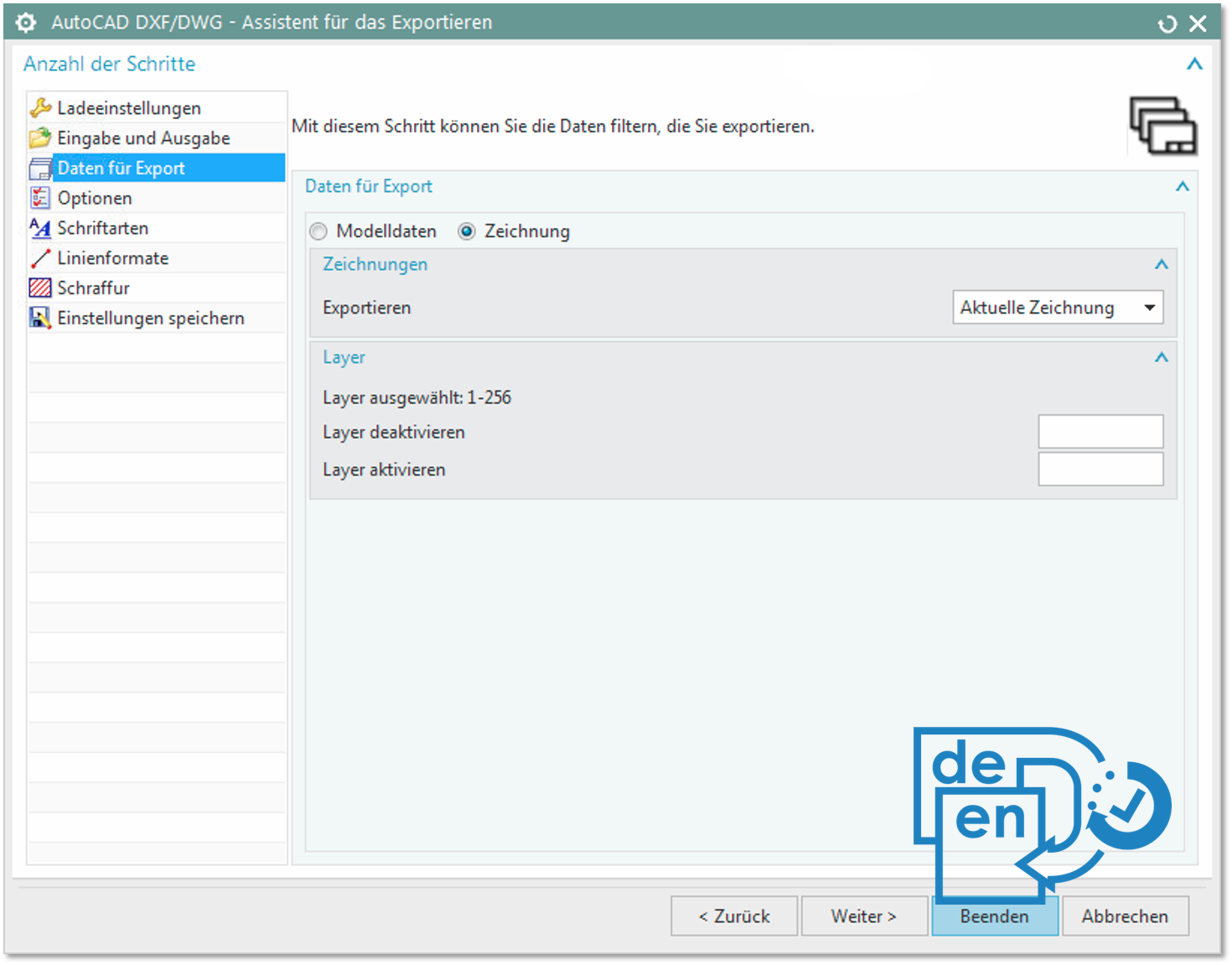

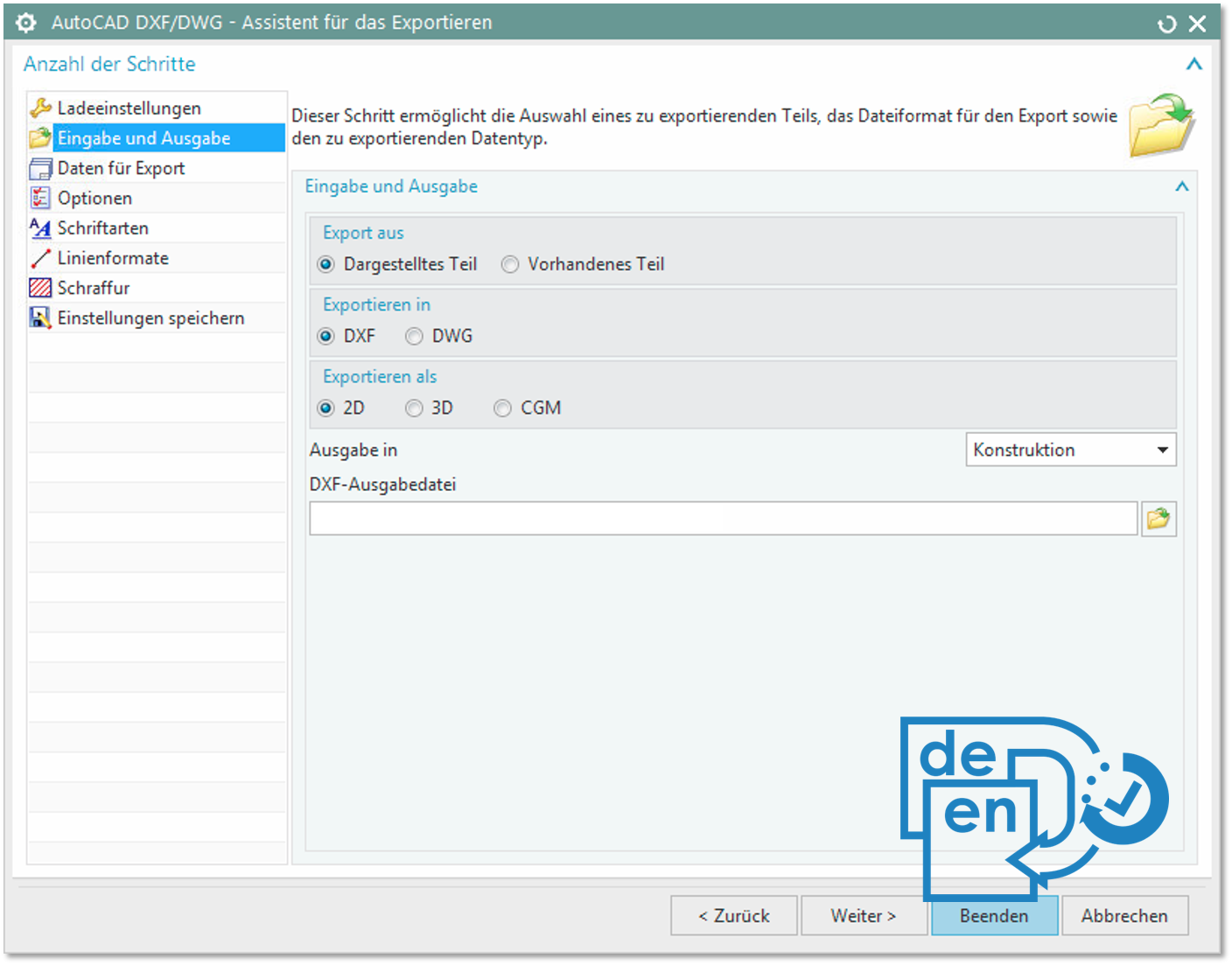

| 2 | Customize export settings | Open the AutoCAD DXF/DWG - Export wizard menu via File > Export > AutoCAD DXF/DWG. Select the following settings in the Input and output, Data for export, Options, Fonts and Line formats submenus.     |
| 3 | Export drawing | Export the drawing in DWG format following the instructions for NX 10. |
DXF export
| Step | Action/result | |
|---|---|---|
| 1 | Customize drawing view | Open the Default drawing view menu via File > Drawing view. Select the Workflow submenu in the View subdirectory. Deactivate the display of the margin of the views there. |
| 2 | Customize export settings | Open the AutoCAD DXF/DWG - Export wizard menu via File > Export > AutoCAD DXF/DWG. Select the following settings in the Input and output, Data for export, Options, Fonts and Line formats submenus. |
| 3 | Export drawing | Export the drawing in DXF format following the instructions for NX 10. |
IGES export
| Step | Action/result | |
|---|---|---|
| 1 | Customize drawing view | Open the Default drawing view menu via File > Drawing view. Select the Workflow submenu in the View subdirectory. Deactivate the display of the margin of the views there. |

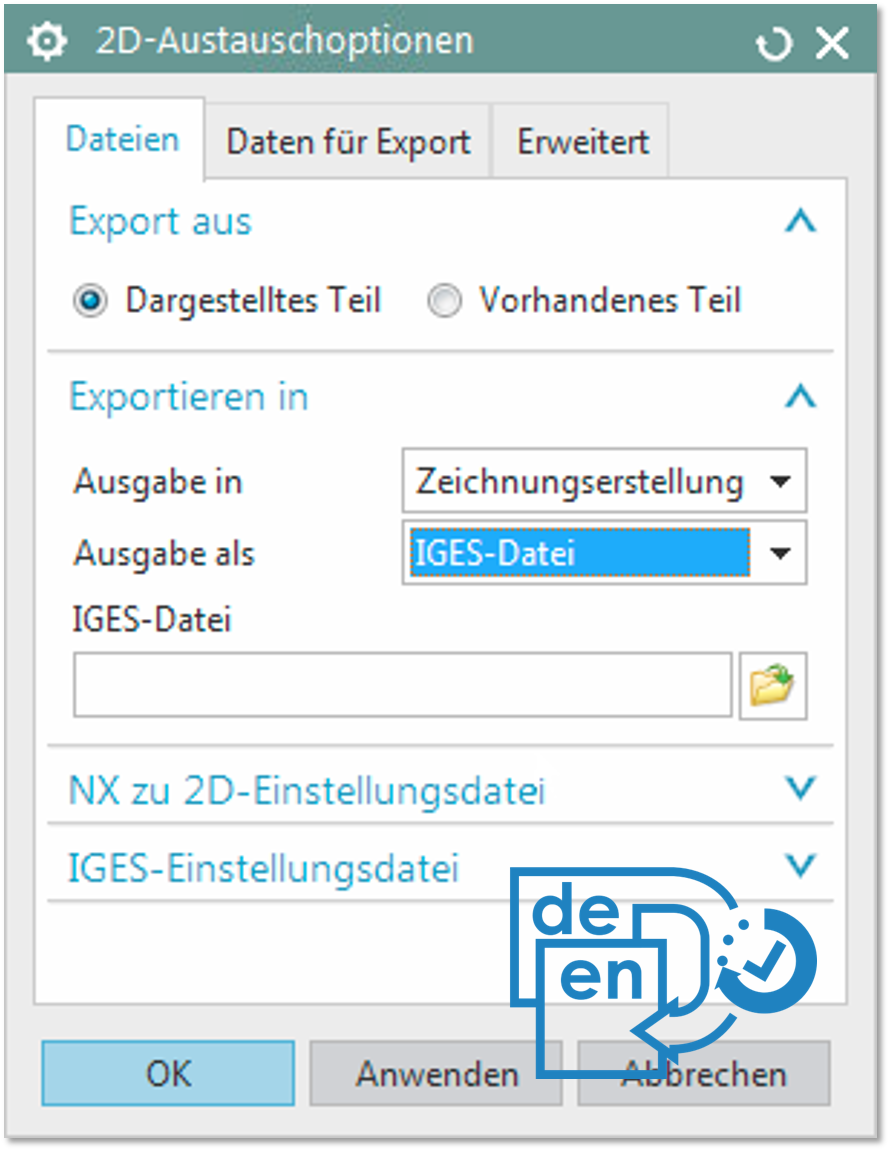

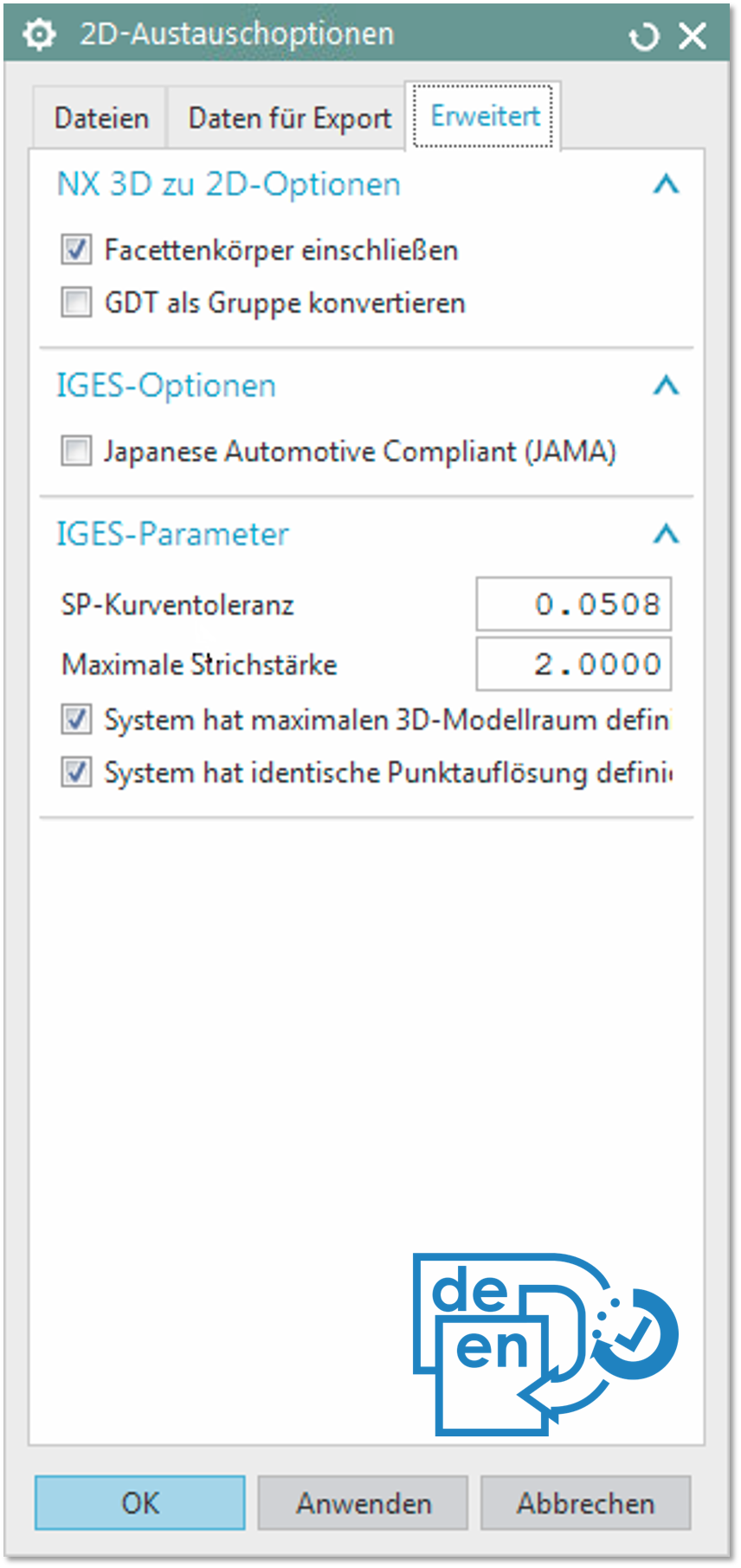

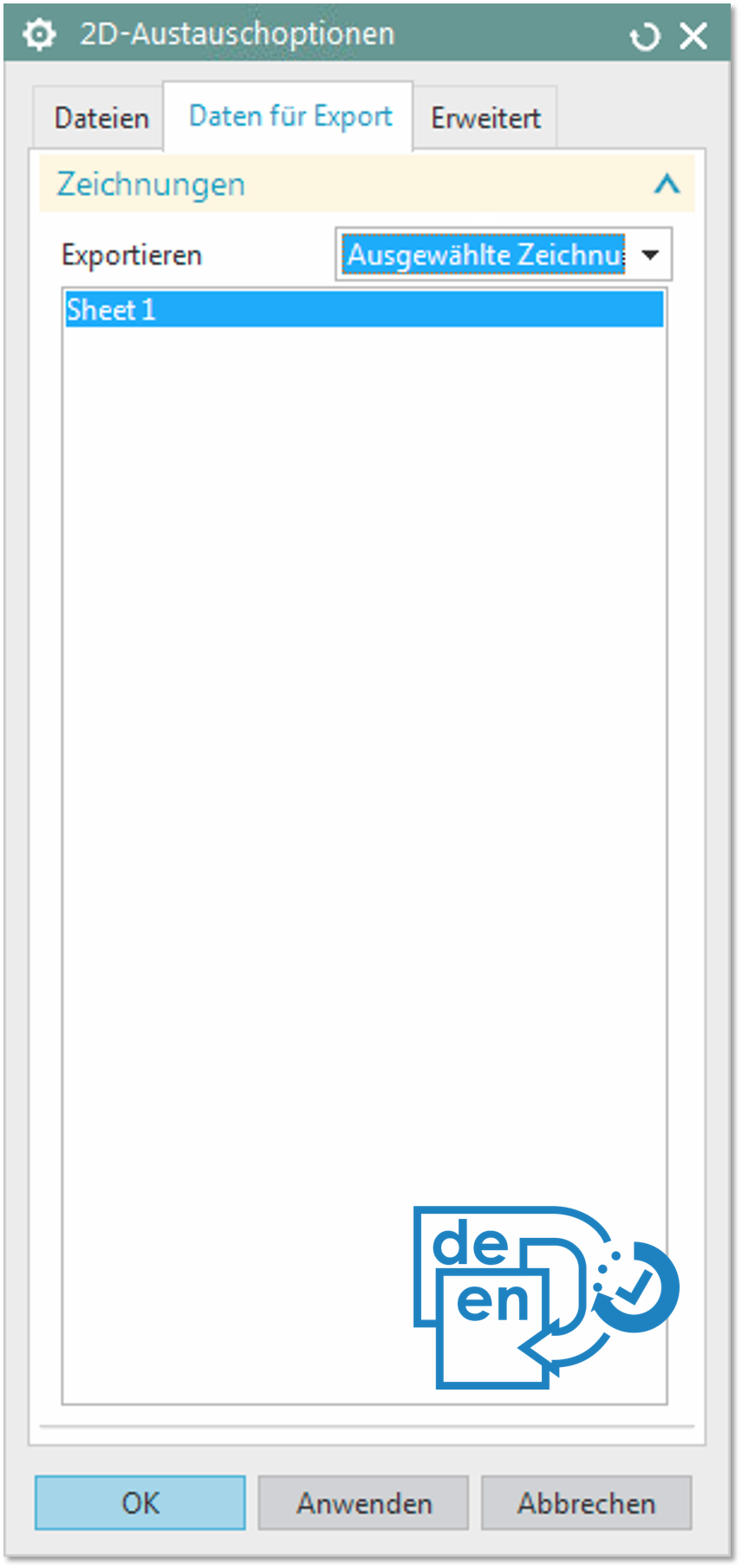

| 2 | Customize exchange options | Open the 2D exchange options menu via File > Export > 2D exchange. Select the following settings on the File, Data for export and Advanced tabs.   |
| 3 | Export drawing | Export the drawing in IGES format following the instructions for NX 10. |
