Characteristics overview

You are able to manage the characteristics of a test plan in the characteristics overview. The characteristics of the currently active test plan are displayed as a list. A test plan is activated when you open an associated drawing sheet.

Content

• Set-up
• Columns of the characteristics list
• Functions for numbering
• Functions for the characteristics list
• Functions for filtering
• More functions

Set-up

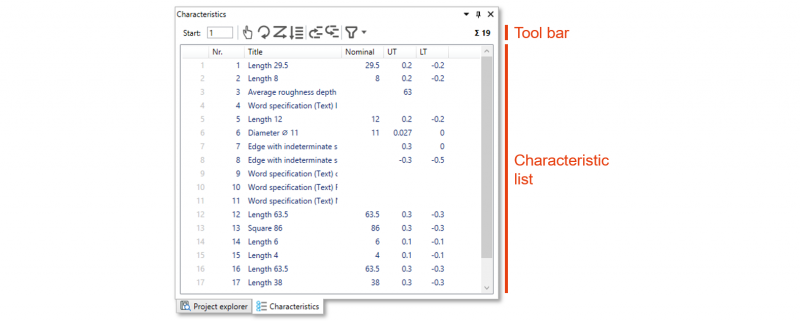

In the toolbar above the characteristics list, you will see functional control elements for numbering and sorting, as well as the number of characteristics in the characteristics list. The sum Σ of characteristics refers to the part of the test plan that is currently being displayed in the characteristics list, not to the entire test plan.

Appearance in program versions 1.x.x.x:

Columns of the characteristics list

	Short description	Reference
	Order in which the characteristics are exported
No.	Stamp marking	More > Terms > Stamp
Title	Title of the characteristic	User interface > Function window > Characteristic properties > Properties
Nominal	Nominal value	User interface > Function window > Characteristic properties > Properties
UT	Upper tolerance	User interface > Function window > Characteristic properties > Properties
LT	Lower tolerance	User interface > Function window > Characteristic properties > Properties

Functions for numbering

	Short description	Reference
Manual numbering	Re-number characteristics by allocating stamp numbers by clicking on individual stamps in the drawing.	Functions > Characteristics > Change numbering
Clockwise numbering	Re-number characteristics by allocating stamp numbers in a clockwise direction around a point in the drawing.	Functions > Characteristics > Change numbering
Left-to-right numbering	Re-number characteristics in reading direction, i.e. from left to right and top to bottom.	Functions > Characteristics > Change numbering
Renumber by list position	Renumber the selected characteristics using the list item.	Functions > Characteristics > Change numbering
Start value	Specify the start value from which the (re-)numbering is to be implemented.	Functions > Characteristics > Automatically stamp Functions > Characteristics > Manually stamp Functions > Characteristics > Change numbering User interface > Function window > Characteristic properties > Properties

Functions for the characteristics list

Note The Duplicate, Delete and Edit characteristic functions are accessed via the context menu displayed when you right-click on a characteristic.

	Short description	Reference
Sort characteristics	Sort all characteristics in the list depending on the size of values in this column.
Move up in list	Move up the selected characteristics in the list. Therefore the characteristics need to be sorted by position.	User interface > Function window > Characteristic overview > Columns of the characteristics list
Move down in list	Move down the selected characteristics in the list. Therefore the characteristics need to be sorted by position.	User interface > Function window > Characteristic overview > Columns of the characteristics list
Duplicate	Create copies of the selected characteristics.
Edit tag	Edit the assignment of tags for the selected characteristics.	Functions > Characteristics > Tag
Delete	Delete the selected characteristics.
