User manual infra CONVERT > User interface > Function window

Characteristics overview


You are able to manage the characteristics of a test plan in the characteristics overview. The characteristics of the currently active test plan are displayed as a list. A test plan is activated when you open an associated drawing sheet.

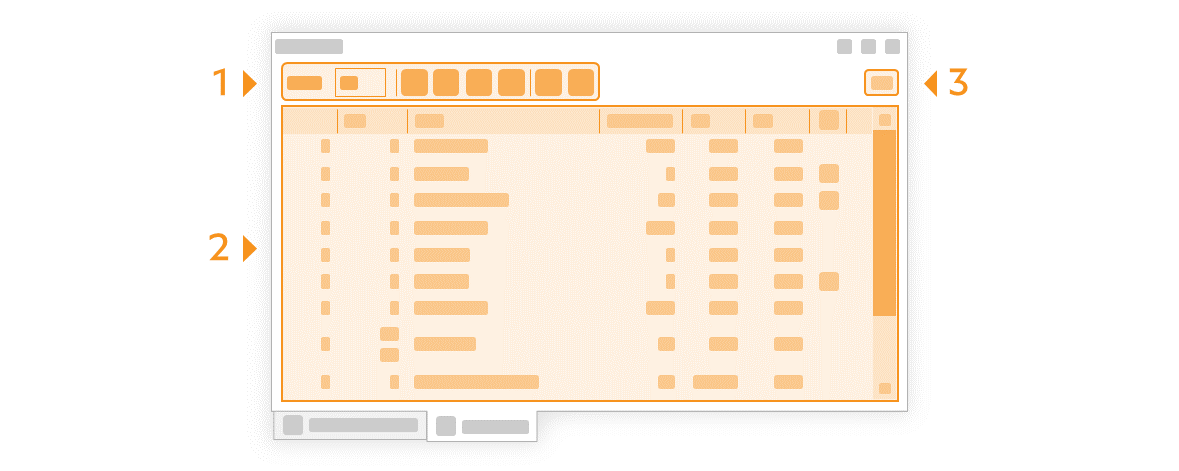

Set-up

In the toolbar above the characteristics list, you will see functional control elements for numbering, filtering and sorting, as well as the number of characteristics in the characteristics list. The sum Σ of characteristics refers to the part of the test plan that is currently being displayed in the characteristics list, not to the entire test plan.

Appearance in program versions 1.x.x.x:


Columns of the characteristics list

Column Short description Reference
Order in which the characteristics are exported
No. Stamp marking More > Terms > Stamp
Title Title of the characteristic User interface > Function window > Characteristic properties > Properties
Nominal Nominal value User interface > Function window > Characteristic properties > Properties
UT Upper tolerance User interface > Function window > Characteristic properties > Properties
LT Lower tolerance User interface > Function window > Characteristic properties > Properties


Functions for numbering

Function Short description Reference
Start value Specify the start value from which the (re-)numbering is to be implemented. Functions > Characteristics > Automatically stamp

Functions > Characteristics > Manually stamp

Functions > Characteristics > Change numbering

User interface > Function window > Characteristic properties > Properties
Manual numbering Re-number characteristics by allocating stamp numbers by clicking on individual stamps in the drawing. Functions > Characteristics > Change numbering
Clockwise numbering Re-number characteristics by allocating stamp numbers in a clockwise direction around a point in the drawing. Functions > Characteristics > Change numbering
Left-to-right numbering Re-number characteristics in reading direction, i.e. from left to right and top to bottom. Functions > Characteristics > Change numbering
Renumber by list position Renumber the selected characteristics using the list item. Functions > Characteristics > Change numbering


Functions for the characteristics list

Note The Duplicate, Delete and Edit characteristic functions are accessed via the context menu displayed when you right-click on a characteristic.
Function Short description Reference
Sort characteristics Sort all characteristics in the list depending on the size of values in this column.
Move up in list Move up the selected characteristics in the list. Therefore the characteristics need to be sorted by position. User interface > Function window > Characteristic overview > Columns of the characteristics list
Move down in list Move down the selected characteristics in the list. Therefore the characteristics need to be sorted by position. User interface > Function window > Characteristic overview > Columns of the characteristics list
Duplicate Create copies of the selected characteristics.
Edit tag Edit the assignment of tags for the selected characteristics. Functions > Characteristics > Tag
Delete Delete the selected characteristics.


Functions for filtering

Note  These functions are only available in the Pro version and from program version 2.0.4.
Function Short description Reference
Filter characteristics Activate the filter for this drawing sheet. Functions > Characteristics > Filtering
Edit feature filters Edit the filter for this drawing sheet. Functions > Characteristics > Filtering


More functions

Function Short description Reference
Display characteristic in drawing Double-click on a characteristic in the list to centre the drawing view onto it.
