User manual infra CONVERT > More

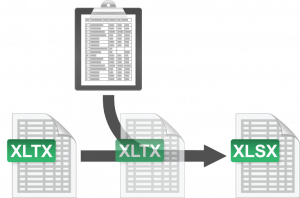

infra CONVERT allows you to export the contents of a test plan directly into a Microsoft Excel workbook. All you need is an excel template file (“*.XLTX”, “*.XLTM”) formatted as described below and Microsoft Excel on the computer on which the export is performed. Using the template, infra CONVERT creates an Excel file (“*.XLSX”, “*.XLSM”, “*.XLS”) with the test plan parameters you specify.
The supplied test report templates are installed by default in the location opposite.
%ProgramData%/ELIAS GmbH/infra-Convert/ExcelReports
Excel templates can be set up and formatted according to your wishes. You can customize the templates provided or create new templates. Place the templates in the folder named ExcelReports above. When exporting test plans, these templates are available, see Functions > Export > Export test plan > Step 2d.
Important Only one worksheet of infra CONVERT can be filled. The position of the sheet in the workbook is irrelevant, but it must be active respectively visible when the template file is saved.
infra CONVERT writes the inspection characteristics line by line, this means among themselves. Name the first cell in the column to be filled with a value with one of the variables from the table below. How to define names in Excel is described in Microsoft Office Help here: Defining and Using Names in Formulas.
Important Each name can only be assigned once.

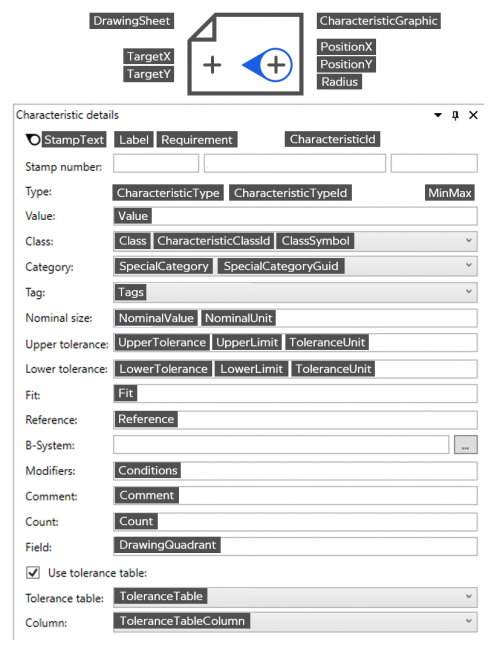

Various variables are available to describe the inspection characteristics with their properties. The following parameters are available.
Name | Description | Reference |
---|---|---|
CharacteristicClassId | ID (“ELIAS-ID”) der Merkmalklasse Note Available as of program version 1.3.4.1 | More > Terms > Class (characteristic-) Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: CollClass |
CharacteristicGraphic | File name of the stamp graphic including the file ending Note Available as of program version 1.3.4.1 | User interface > Function window > Features properties > Properties Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColGraphicFile |
CharacteristicId | Unique GUID for the feature Note Available as of program version 1.3.4.1 | Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: CollD |
CharacteristicType | Characteristic type (variable, attributive) | More > Terms > Characteristic (test-, quality-) Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColAttributeType |
CharacteristicTypeId | Characteristic type ID (1 = Variable; 0 = Attributive) Note Available as of program version 1.3.4.1 | More > Terms > Class (characteristic-) Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColAttributeType |
Class | Characteristic class | More > Terms > Class (characteristic-) Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColClass |
ClassSymbol | Graphic symbol or label | More > Terms > Class (characteristic-) |
Comment | Comment | User interface > Function window > Characteristic properties Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColComent |
Conditions | Modifiers Note Available from program version 2.2.7 | User interface > Function windows > Characteristic properties > Properties > Modifiers Terms > More > Specification operators and modifiers (ISO GPS) |
Count | Number of repetitions Note Available from program version 2.2.7 | User interface > Function windows > Characteristic properties > Properties > Properties > Count |
DrawingQuadrant | Field division | More > Terms > Drawing sheet Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColDrawingQuadrant |
DrawingSheet | File name of the drawing sheet including the file ending Note Available as of program version 1.3.4.1 | Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColGraphicFile |
Fit | Tolerance class (specifiction of fits) | More > Terms > Tolerance table Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColPassung |
Label | Characteristic title, as displayed in infra CONVERT | User interface > Function window > Characteristic properties > Properties > Titel Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColLabel |
LowerLimit | Lower limit value/minimum value, calculated from the nominal value and upper tolerance / lower deviation limit when exporting* Note Available as of program version 1.3.4.1 | More > More > Measurement (sizes-) |
LowerTolerance | Lower Tolerance* | More > Terms > Measurement (sizes-) Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColToleranceLow |
MinMax | Tag: Limit dimension in one direction (min., max.) Note Available from program version 2.2.7 | Settings > Settings > Merkmale > “Limit values in one direction (min., max.)” group |
NominalUnit | Unit of measurement Note Available from program version 1.3.9.7 | More > Terms > Measurement (sizes-) |
NominalValue | Value of the nominal value* | More > Terms > Measurement (sizes-) Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColValue |
PositionX | X-coordinate of the stamp in pixel Note Available as of program version 1.3.4.1 | Functions > Characteristics > Reposition and align stamp Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColPositionX |
PositionY | Y-coordinate of the stamp in pixel Note Available as of program version 1.3.4.1 | Functions > Characteristics > Reposition and align stamp Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColPositionY |
Radius | Size of the stamp, indicated as radius in pixel Note Available as of program version 1.3.4.1 | Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColDiameterStamp |
Reference | Reference Note Available from program version 2.2.7 | User interface > Function windows > Characteristic properties > Properties |
Requirement | Complete requirement, individually formattable for each feature class. | Administrator's Manual > Configuration and Import > Parameter file “CharacteristicClasses” > Formatting the export variable "Requirement" Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColLabel |
SpecialCategory | Category | More > Terms > Category (characteristic-) |
SpecialCategoryGuid | Category GUID Note Available as of program version 1.3.9.4 | More > Kategorie (Merkmal-) |
StampText | Stamp inscription | More > Terms > Stamp/stamps Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColStampText |
Tags | Label/Tag | More > Terms > Label |
TargetX | X-coordinate of the reference point (target point, origin point) of the stamp in pixel Note Available as of program version 1.3.4.1 | Functions > Characteristics > Reposition and align stamp Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColDestinationPositionX |
TargetY | Y-coordinate of the reference point (target point, origin point) of the stamp in pixel (Available as of program version 1.3.4.1) | Functions > Characteristics > Reposition and align stamp Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColestinationPositionY |
ToleranceTable | Tlolerance table | More > Terms > Toleranztabelle Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColToleranceTable |
ToleranceTableColumn | Tolerance class in Tolerance table (column) | More > Terms > Toleranztabelle Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColToleranceTable |
ToleranceUnit | Unit of the tolerance limits Note Available from program version 1.3.9.7 | More > Terms > Measurement (sizes-) |
UpperLimit | Upper limit value/maximum value, calculated from the nominal value and lower tolerance / upper deviation limit when exporting* Note Available as of program version 1.3.4.1 | More > More > Measurement (sizes-) |
UpperTolerance | Upper Tolerance* | More > Terms > Measurement (sizes-) Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColToleranceHigh |
Value | Value Note Available as of program version 1.3.4.1 | User interface > Function window > Characteristic properties Field name in Excel Report Add-In for infra - CONVERT with approximate equivalent: ColText |
* [Note The restriction described in the following no longer applies from programme version 2.5.3. From this version onwards, numerical values are no longer exported as text but as numbers.] Nominal and tolerance values are output as a text string to match the representation in the specification on the drawing. If you want to continue calculating with the numeric values, it may be useful to convert the strings into numbers. You can use the Excel VALUE function for this.
